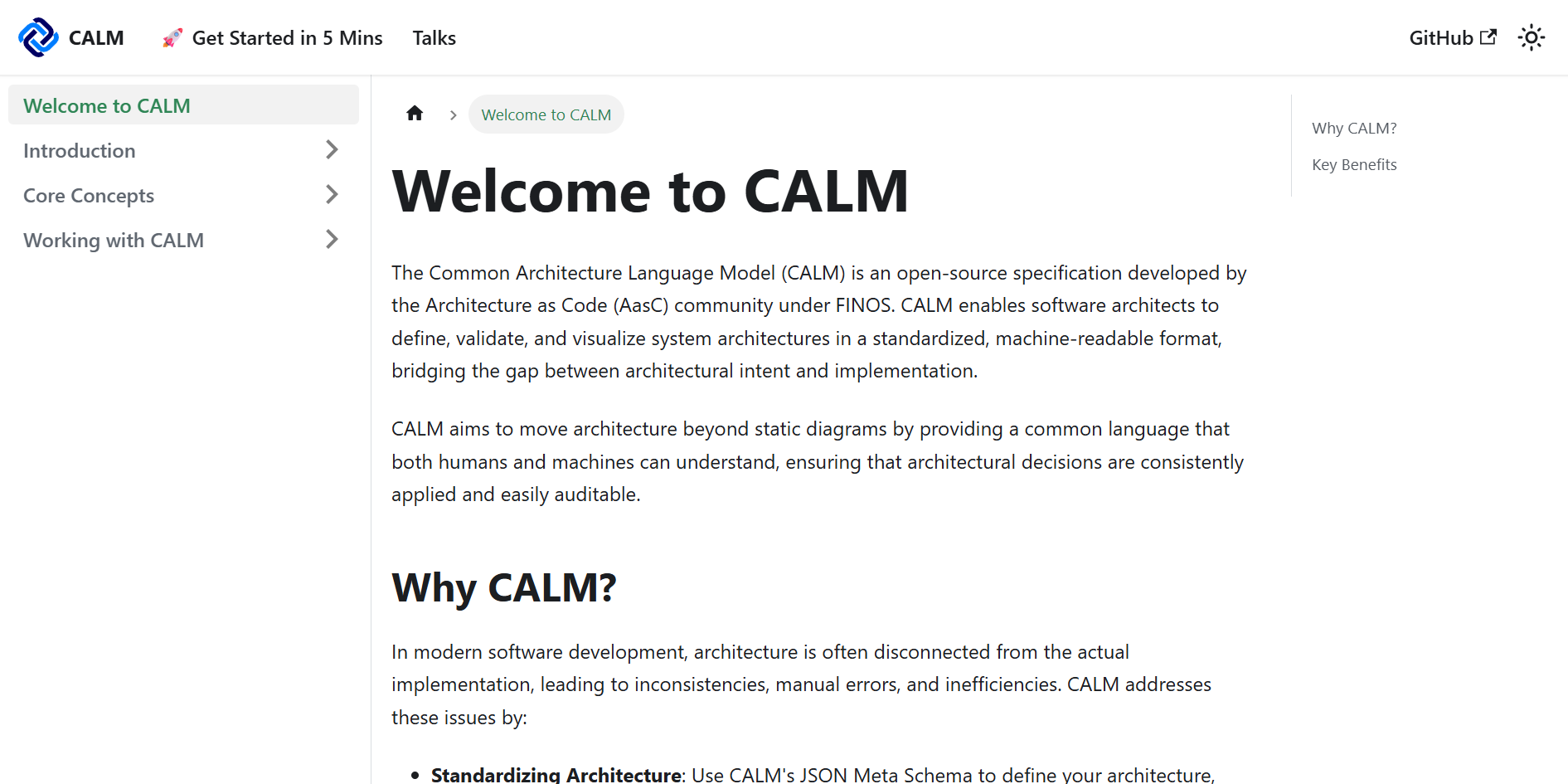

CALM: Architecture-as-Code
ISD Architecture
Finley Bacon
2025-10-15
Architecture as Code?
What?
- Modelling architecture in code (e.g. JSON, YAML, DSLs)
- Generate diagrams from models instead of manually drawing them
- Store architecture close to source code
Why?
Alleged benefits:
- Machine-readable architecture models enable automated validation & compliance checks
- Architecture can be version controlled alongside source code
- Developers and architects work from the same source of truth
- A single model can generate multiple outputs (diagrams, documentation, reports)
- Easier to keep architecture up to date as the system changes
Before we test those claims…
Cast your minds back
C4 Model
Recap

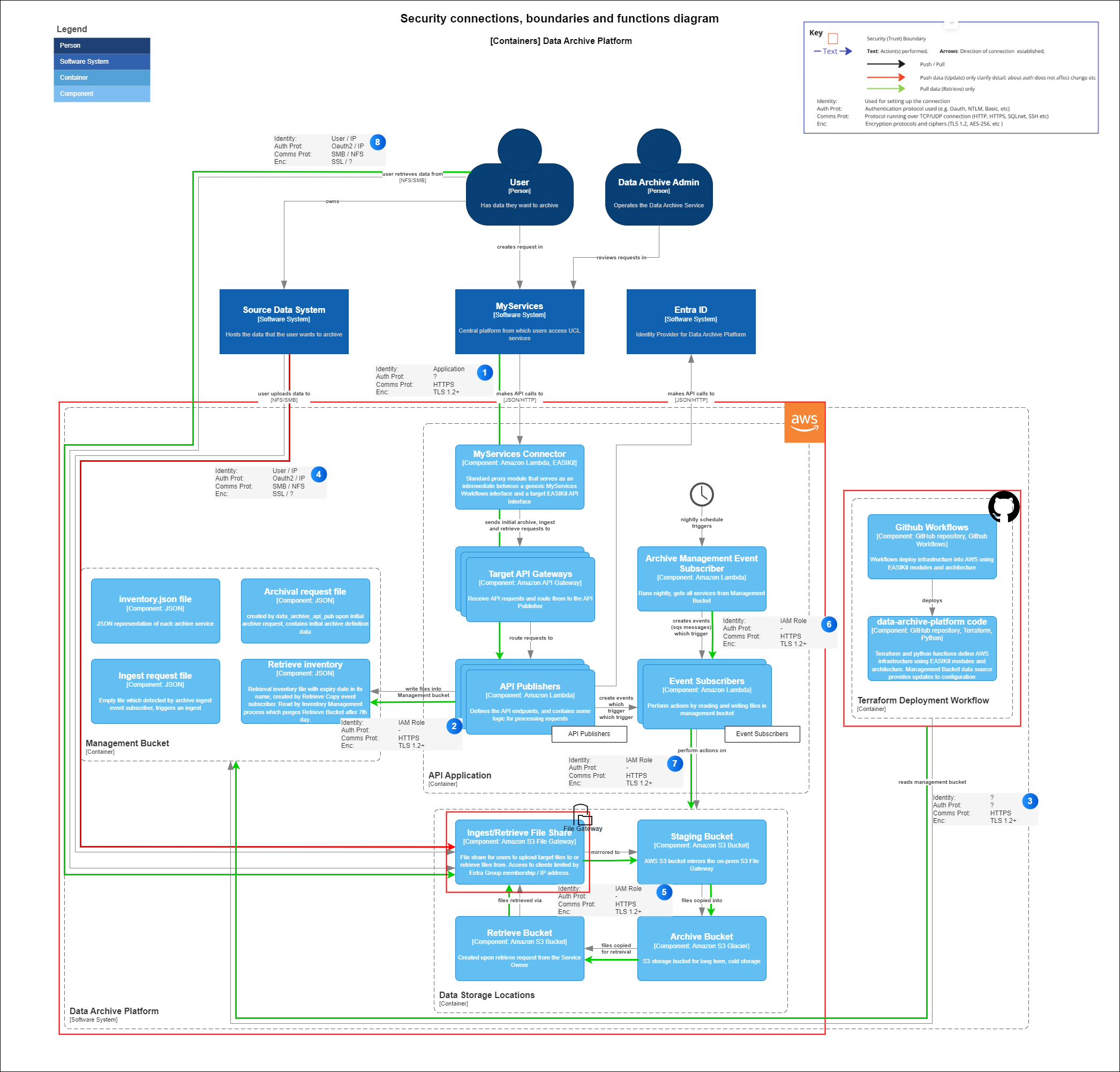

Data Archive
ARC Services Portal

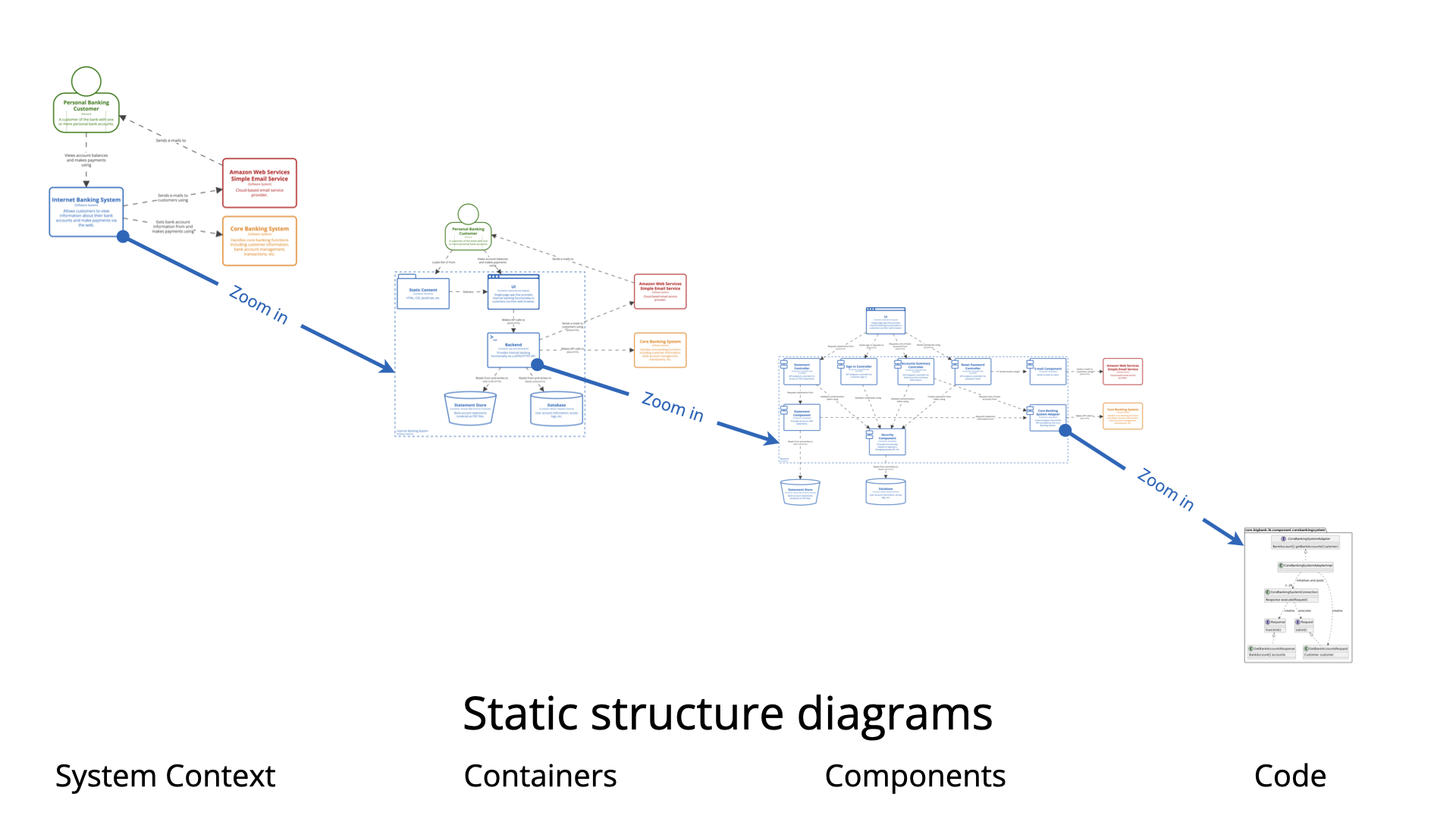

The C4 model was created as a way to help software development teams describe and communicate software architecture, both during up-front design sessions and when retrospectively documenting an existing codebase.
Rationale
Rationale
- Inconsistent notation (colour coding, shapes, line styles, etc.)
- Ambiguous naming
- Unlabelled relationships
- Generic terminology
- Missing technology choices
- Mixed abstractions
Not good for communicating architecture
Workflow
- Model using Structurizr DSL
workspace "ARC Services Portal" "Models the architecture of a research services web portal" {
!identifiers hierarchical
model {
properties {
"structurizr.groupSeparator" "/"
}
user = person "Researcher" "Uses the platform to manage their research profile and data."
admin = person "Admin" "Portal user with elevated permissions to edit data or review submissions."
entra = softwareSystem "Microsoft Entra" "Identity provider (SSO)" "Existing System"
tre = softwareSystem "TRE" "Secure processing environment for sensitive research data" "Existing System"
ghcr = softwareSystem "GitHub Container Registry" "Stores container images" "Existing System"
uclSystem = softwareSystem "..." "Other UCL consumer of portal data" "Existing System"
portal = softwareSystem "ARC Services Portal" "Enables management of Studies, Projects, user training and information governance" {
group "K8S cluster" {
api = container "API" "API backend with /web/api and /tre/api (and other) endpoints" "Go" {
group "Shared Services" {
projectService = component "Project Service" "Handles project workflows" "Go"
userService = component "User Service" "Handles user workflows" "Go"
otherService = component "..." "Other backend services" "Go"
}
group "Web API" {
webhttpHandlers = component "HTTP Handlers for web frontend" "Handles REST endpoints" "Go"
webhttpHandlers -> userService "Calls"
webhttpHandlers -> projectService "Calls"
webhttpHandlers -> otherService "Calls"
}
group "TRE API" {
trehttpHandlers = component "HTTP Handlers for UCL TREs" "Handles REST endpoints" "Go"
trehttpHandlers -> userService "Calls"
trehttpHandlers -> projectService "Calls"
trehttpHandlers -> otherService "Calls"
}
group "Other API" {
otherhttpHandlers = component "HTTP Handlers for other UCL systems" "Handles REST endpoints" "Go"
otherhttpHandlers -> otherService "Calls"
}
}
webFrontend = container "Web Frontend" "User-facing web app" "React, TypeScript" {
pages = component "Pages" "UCL Design System-styled pages for profile, studies, projects" "React"
apiClient = component "API Client" "Generated from OpenAPI spec" "TypeScript"
pages -> apiClient "Calls"
}
oauth2Proxy = container "OAuth2 Proxy" "Proxy providing OAuth2 authentication" "quay.io/oauth2-proxy/oauth2-proxy"
nginx = container "Reverse Proxy" "Routes requests to frontend and backend" "nginx"
postgres = container "Database" "Stores user, project, portal etc. data" "PostgreSQL"
api.projectService -> postgres "Reads/writes data"
api.userService -> postgres "Reads/writes data"
api.otherService -> postgres "Read/writes data"
nginx -> api.trehttpHandlers "Proxies /tre/api requests"
nginx -> api.otherhttpHandlers "Proxies other api requests"
nginx -> webFrontend.pages "Serves"
webFrontend.apiClient -> oauth2Proxy "Forwards /web/api requests for authentication"
oauth2Proxy -> api.webhttpHandlers "Forwards authenticated /web/api requests to backend"
}
deploy = container "CI/CD Pipeline" "Builds and deploys infrastructure and app" "GitHub Actions + Terraform" {
group "Portal App Repository" {
gha_portal = component "GitHub Actions (Portal Repo)" "Builds & pushes container images" "GitHub Actions"
}
group "Infrastructure Repository" {
gha_infra = component "GitHub Actions (Infra Repo)" "Applies Terraform in AWS" "GitHub Actions"
tf = component "Terraform Code" "Defines and provisions cloud infra" "Terraform"
gha_infra -> tf "Runs"
}
}
portal.deploy.tf -> ghcr "Pulls images for deployment"
portal.deploy.gha_portal -> ghcr "Pushes container images"
}
user -> portal.webFrontend.pages "Accesses via browser"
admin -> portal.webFrontend.pages "Administers via browser"
portal.oauth2Proxy -> entra "Authenticates requests against" "SSO"
tre -> portal.nginx "Accesses /tre/api for data retrieval" "REST/JSON"
uclSystem -> portal.nginx "Accesses api for data retrieval" "REST/JSON"
}
views {
systemContext portal "C1-Portal_Context" {
include *
description "Context diagram showing how the Research Platform fits within the broader environment."
}

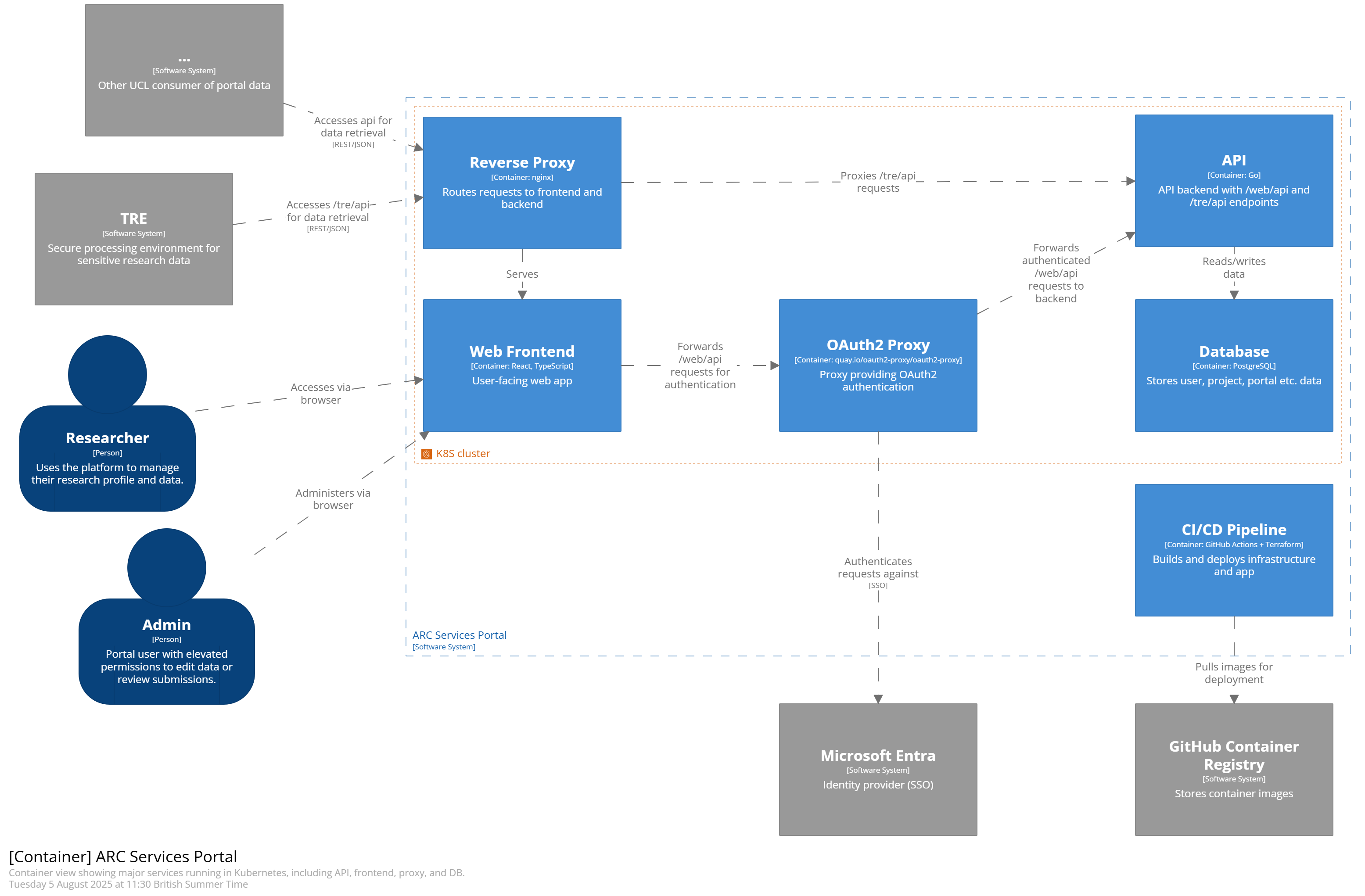

container portal "C2-Portal_Containers" {
include *
description "Container view showing major services running in Kubernetes, including API, frontend, proxy, and DB."
}
component portal.api "C3-Web_API_Internals" {
include *
description "Component view showing key service components inside the API backend."
}
component portal.webFrontend "C3-Web_Frontend_Internals" {
include *
description "Component view showing the UI modules and OpenAPI client."
}
component portal.deploy "C3-Deployment_Workflow" {
include *
description "Component view showing how CI/CD is managed using GitHub Actions and Terraform."
}
styles {
element "Person" {
shape person
background #08427b
color #ffffff
}
element "Software System" {
background #1168bd
color #ffffff
}
element "Container" {
background #438dd5
color #ffffff
}
element "Component" {
background #85bbf0
color #000000
}
element "Existing System" {
background #999999
}
element "Group:K8S cluster" {
color #d86613
icon https://static.structurizr.com/themes/amazon-web-services-2020.04.30/amazon-elastic-kubernetes-service.png
}
}
}
}Workflow
- Create views
workspace "ARC Services Portal" "Models the architecture of a research services web portal" {
!identifiers hierarchical
model {
properties {
"structurizr.groupSeparator" "/"
}
user = person "Researcher" "Uses the platform to manage their research profile and data."
admin = person "Admin" "Portal user with elevated permissions to edit data or review submissions."
entra = softwareSystem "Microsoft Entra" "Identity provider (SSO)" "Existing System"
tre = softwareSystem "TRE" "Secure processing environment for sensitive research data" "Existing System"
ghcr = softwareSystem "GitHub Container Registry" "Stores container images" "Existing System"
uclSystem = softwareSystem "..." "Other UCL consumer of portal data" "Existing System"
portal = softwareSystem "ARC Services Portal" "Enables management of Studies, Projects, user training and information governance" {
group "K8S cluster" {
api = container "API" "API backend with /web/api and /tre/api (and other) endpoints" "Go" {
group "Shared Services" {
projectService = component "Project Service" "Handles project workflows" "Go"
userService = component "User Service" "Handles user workflows" "Go"
otherService = component "..." "Other backend services" "Go"
}
group "Web API" {
webhttpHandlers = component "HTTP Handlers for web frontend" "Handles REST endpoints" "Go"
webhttpHandlers -> userService "Calls"
webhttpHandlers -> projectService "Calls"
webhttpHandlers -> otherService "Calls"
}
group "TRE API" {
trehttpHandlers = component "HTTP Handlers for UCL TREs" "Handles REST endpoints" "Go"
trehttpHandlers -> userService "Calls"
trehttpHandlers -> projectService "Calls"
trehttpHandlers -> otherService "Calls"
}
group "Other API" {
otherhttpHandlers = component "HTTP Handlers for other UCL systems" "Handles REST endpoints" "Go"
otherhttpHandlers -> otherService "Calls"
}
}
webFrontend = container "Web Frontend" "User-facing web app" "React, TypeScript" {
pages = component "Pages" "UCL Design System-styled pages for profile, studies, projects" "React"
apiClient = component "API Client" "Generated from OpenAPI spec" "TypeScript"
pages -> apiClient "Calls"
}
oauth2Proxy = container "OAuth2 Proxy" "Proxy providing OAuth2 authentication" "quay.io/oauth2-proxy/oauth2-proxy"
nginx = container "Reverse Proxy" "Routes requests to frontend and backend" "nginx"
postgres = container "Database" "Stores user, project, portal etc. data" "PostgreSQL"
api.projectService -> postgres "Reads/writes data"
api.userService -> postgres "Reads/writes data"
api.otherService -> postgres "Read/writes data"
nginx -> api.trehttpHandlers "Proxies /tre/api requests"
nginx -> api.otherhttpHandlers "Proxies other api requests"
nginx -> webFrontend.pages "Serves"
webFrontend.apiClient -> oauth2Proxy "Forwards /web/api requests for authentication"
oauth2Proxy -> api.webhttpHandlers "Forwards authenticated /web/api requests to backend"
}
deploy = container "CI/CD Pipeline" "Builds and deploys infrastructure and app" "GitHub Actions + Terraform" {
group "Portal App Repository" {
gha_portal = component "GitHub Actions (Portal Repo)" "Builds & pushes container images" "GitHub Actions"
}
group "Infrastructure Repository" {
gha_infra = component "GitHub Actions (Infra Repo)" "Applies Terraform in AWS" "GitHub Actions"
tf = component "Terraform Code" "Defines and provisions cloud infra" "Terraform"
gha_infra -> tf "Runs"
}
}
portal.deploy.tf -> ghcr "Pulls images for deployment"
portal.deploy.gha_portal -> ghcr "Pushes container images"
}
user -> portal.webFrontend.pages "Accesses via browser"
admin -> portal.webFrontend.pages "Administers via browser"
portal.oauth2Proxy -> entra "Authenticates requests against" "SSO"
tre -> portal.nginx "Accesses /tre/api for data retrieval" "REST/JSON"
uclSystem -> portal.nginx "Accesses api for data retrieval" "REST/JSON"
}
views {
systemContext portal "C1-Portal_Context" {
include *
description "Context diagram showing how the Research Platform fits within the broader environment."
}
container portal "C2-Portal_Containers" {
include *
description "Container view showing major services running in Kubernetes, including API, frontend, proxy, and DB."
}
component portal.api "C3-Web_API_Internals" {
include *
description "Component view showing key service components inside the API backend."
}
component portal.webFrontend "C3-Web_Frontend_Internals" {
include *
description "Component view showing the UI modules and OpenAPI client."
}
component portal.deploy "C3-Deployment_Workflow" {
include *
description "Component view showing how CI/CD is managed using GitHub Actions and Terraform."
}
styles {
element "Person" {
shape person
background #08427b
color #ffffff
}
element "Software System" {
background #1168bd
color #ffffff
}
element "Container" {
background #438dd5
color #ffffff
}
element "Component" {
background #85bbf0
color #000000
}
element "Existing System" {
background #999999
}
element "Group:K8S cluster" {
color #d86613
icon https://static.structurizr.com/themes/amazon-web-services-2020.04.30/amazon-elastic-kubernetes-service.png
}
}
}
}Workflow
- Apply styles
workspace "ARC Services Portal" "Models the architecture of a research services web portal" {
!identifiers hierarchical
model {
properties {
"structurizr.groupSeparator" "/"
}
user = person "Researcher" "Uses the platform to manage their research profile and data."
admin = person "Admin" "Portal user with elevated permissions to edit data or review submissions."
entra = softwareSystem "Microsoft Entra" "Identity provider (SSO)" "Existing System"
tre = softwareSystem "TRE" "Secure processing environment for sensitive research data" "Existing System"
ghcr = softwareSystem "GitHub Container Registry" "Stores container images" "Existing System"
uclSystem = softwareSystem "..." "Other UCL consumer of portal data" "Existing System"
portal = softwareSystem "ARC Services Portal" "Enables management of Studies, Projects, user training and information governance" {
group "K8S cluster" {
api = container "API" "API backend with /web/api and /tre/api (and other) endpoints" "Go" {
group "Shared Services" {
projectService = component "Project Service" "Handles project workflows" "Go"
userService = component "User Service" "Handles user workflows" "Go"
otherService = component "..." "Other backend services" "Go"
}
group "Web API" {
webhttpHandlers = component "HTTP Handlers for web frontend" "Handles REST endpoints" "Go"
webhttpHandlers -> userService "Calls"
webhttpHandlers -> projectService "Calls"
webhttpHandlers -> otherService "Calls"
}
group "TRE API" {
trehttpHandlers = component "HTTP Handlers for UCL TREs" "Handles REST endpoints" "Go"
trehttpHandlers -> userService "Calls"
trehttpHandlers -> projectService "Calls"
trehttpHandlers -> otherService "Calls"
}
group "Other API" {
otherhttpHandlers = component "HTTP Handlers for other UCL systems" "Handles REST endpoints" "Go"
otherhttpHandlers -> otherService "Calls"
}
}
webFrontend = container "Web Frontend" "User-facing web app" "React, TypeScript" {
pages = component "Pages" "UCL Design System-styled pages for profile, studies, projects" "React"
apiClient = component "API Client" "Generated from OpenAPI spec" "TypeScript"
pages -> apiClient "Calls"
}
oauth2Proxy = container "OAuth2 Proxy" "Proxy providing OAuth2 authentication" "quay.io/oauth2-proxy/oauth2-proxy"
nginx = container "Reverse Proxy" "Routes requests to frontend and backend" "nginx"
postgres = container "Database" "Stores user, project, portal etc. data" "PostgreSQL"
api.projectService -> postgres "Reads/writes data"
api.userService -> postgres "Reads/writes data"
api.otherService -> postgres "Read/writes data"
nginx -> api.trehttpHandlers "Proxies /tre/api requests"
nginx -> api.otherhttpHandlers "Proxies other api requests"
nginx -> webFrontend.pages "Serves"
webFrontend.apiClient -> oauth2Proxy "Forwards /web/api requests for authentication"
oauth2Proxy -> api.webhttpHandlers "Forwards authenticated /web/api requests to backend"
}
deploy = container "CI/CD Pipeline" "Builds and deploys infrastructure and app" "GitHub Actions + Terraform" {
group "Portal App Repository" {
gha_portal = component "GitHub Actions (Portal Repo)" "Builds & pushes container images" "GitHub Actions"
}
group "Infrastructure Repository" {
gha_infra = component "GitHub Actions (Infra Repo)" "Applies Terraform in AWS" "GitHub Actions"
tf = component "Terraform Code" "Defines and provisions cloud infra" "Terraform"
gha_infra -> tf "Runs"
}
}
portal.deploy.tf -> ghcr "Pulls images for deployment"
portal.deploy.gha_portal -> ghcr "Pushes container images"
}
user -> portal.webFrontend.pages "Accesses via browser"
admin -> portal.webFrontend.pages "Administers via browser"
portal.oauth2Proxy -> entra "Authenticates requests against" "SSO"
tre -> portal.nginx "Accesses /tre/api for data retrieval" "REST/JSON"
uclSystem -> portal.nginx "Accesses api for data retrieval" "REST/JSON"
}
views {
systemContext portal "C1-Portal_Context" {
include *
description "Context diagram showing how the Research Platform fits within the broader environment."
}
container portal "C2-Portal_Containers" {
include *
description "Container view showing major services running in Kubernetes, including API, frontend, proxy, and DB."
}
component portal.api "C3-Web_API_Internals" {
include *
description "Component view showing key service components inside the API backend."
}
component portal.webFrontend "C3-Web_Frontend_Internals" {
include *
description "Component view showing the UI modules and OpenAPI client."
}
component portal.deploy "C3-Deployment_Workflow" {
include *
description "Component view showing how CI/CD is managed using GitHub Actions and Terraform."
}
styles {
element "Person" {
shape person
background #08427b
color #ffffff
}
element "Software System" {
background #1168bd
color #ffffff
}
element "Container" {
background #438dd5
color #ffffff
}
element "Component" {
background #85bbf0
color #000000
}
element "Existing System" {
background #999999
}
element "Group:K8S cluster" {
color #d86613
icon https://static.structurizr.com/themes/amazon-web-services-2020.04.30/amazon-elastic-kubernetes-service.png
}
}
}
}Workflow
- Generate and export images
ARC Services Portal
CALM
What is CALM?
The Common Architecture Language Model
https://calm.finos.org/
How does CALM fit in?
- It does not replace the C4 model, it complements it
C4 Comparison
C4 Model
- A set of hierarchical abstractions - software systems, containers, components, and code.
- Diagrams - system context, containers, components (and code)
- Notation independent
- Tooling independent
CALM
- A JSON Meta Schema to define your architecture
- A CLI for generating, validating, docifying architectures
- A UI for visualising architectures
- Provides the
notationandtoolingC4 is agnostic about
JSON Schemas
… are gross
{
"$schema": "https://json-schema.org/draft/2020-12/schema",
"$id": "https://calm.finos.org/release/1.0/meta/core.json",
"title": "Common Architecture Language Model (CALM) Vocab",
"type" : "object",
"properties": {
"nodes": {
"type": "array",
"items": {
"$ref": "#/defs/node"
}
},
"relationships": {
"type": "array",
"items": {
"$ref": "#/defs/relationship"
}
},
"metadata": {
"$ref": "#/defs/metadata"
},
"controls": {
"$ref": "control.json#/defs/controls"
},
"flows": {
"type": "array",
"items": {
"$ref": "flow.json#/defs/flow"
}
},
"adrs": {
"type": "array",
"items": {
"type": "string"
},
"description": "External links to ADRs (Architecture Decision Records) or similar documents that provide context or decisions related to the architecture. These can be URLs or references to internal documentation."
},
"additionalProperties": false
},
"defs": {
"node": {
"type": "object",
"properties": {
"unique-id": {
"type": "string"
},
"node-type": {
"$ref": "#/defs/node-type-definition"
},
"name": {
"type": "string"
},
"description": {
"type": "string"
},
"details": {
"type": "object",
"properties": {
"detailed-architecture": {
"type": "string"
},
"required-pattern": {
"type": "string"
}
},
"additionalProperties": false
},
"interfaces": {
"type": "array",
"items": {
"anyOf": [
{ "$ref": "interface.json#/defs/interface-definition" },
{ "$ref": "interface.json#/defs/interface-type" }
]
}
},
"controls": {
"$ref": "control.json#/defs/controls"
},
"metadata": {
"$ref": "#/defs/metadata"
}
},
"required": [
"unique-id",
"node-type",
"name",
"description"
],
"additionalProperties": true
},
"relationship": {
"type": "object",
"properties": {
"unique-id": {
"type": "string"
},
"description": {
"type": "string"
},
"relationship-type": {
"type": "object",
"properties": {
"interacts": {
"$ref": "#/defs/interacts-type"
},
"connects": {
"$ref": "#/defs/connects-type"
},
"deployed-in": {
"$ref": "#/defs/deployed-in-type"
},
"composed-of": {
"$ref": "#/defs/composed-of-type"
},
"options": {
"$ref": "#/defs/option-type"
}
},
"oneOf": [
{
"required": [
"deployed-in"
]
},
{
"required": [
"composed-of"
]
},
{
"required": [
"interacts"
]
},
{
"required": [
"connects"
]
},
{
"required": [
"options"
]
}
]
},
"protocol": {
"$ref": "#/defs/protocol"
},
"metadata": {
"$ref": "#/defs/metadata"
},
"controls": {
"$ref": "control.json#/defs/controls"
}
},
"required": [
"unique-id",
"relationship-type"
],
"additionalProperties": true
},
"protocol": {
"enum": [
"HTTP",
"HTTPS",
"FTP",
"SFTP",
"JDBC",
"WebSocket",
"SocketIO",
"LDAP",
"AMQP",
"TLS",
"mTLS",
"TCP"
]
},
"node-type-definition": {
"anyOf": [
{
"enum": [
"actor",
"ecosystem",
"system",
"service",
"database",
"network",
"ldap",
"webclient",
"data-asset"
]
},
{
"type": "string"
}
]
},
"interacts-type": {
"type": "object",
"properties": {
"actor": {
"type": "string"
},
"nodes": {
"type": "array",
"minItems": 1,
"items": {
"type": "string"
}
}
},
"required": [
"actor",
"nodes"
]
},
"connects-type": {
"type": "object",
"properties": {
"source": {
"$ref": "interface.json#/defs/node-interface"
},
"destination": {
"$ref": "interface.json#/defs/node-interface"
}
},
"required": [
"source",
"destination"
]
},
"deployed-in-type": {
"type": "object",
"properties": {
"container": {
"type": "string"
},
"nodes": {
"type": "array",
"minItems": 1,
"items": {
"type": "string"
}
}
},
"required": [
"container",
"nodes"
]
},
"composed-of-type": {
"type": "object",
"properties": {
"container": {
"type": "string"
},
"nodes": {
"type": "array",
"minItems": 1,
"items": {
"type": "string"
}
}
},
"required": [
"container",
"nodes"
]
},
"option-type": {
"type": "array",
"items": {
"$ref": "#/defs/decision"
}
},
"decision": {
"type": "object",
"properties": {
"description": {
"type": "string"
},
"nodes": {
"type": "array",
"items": {
"type": "string"
}
},
"relationships": {
"type": "array",
"items": {
"type": "string"
}
},
"controls": {
"type": "array",
"items": {
"type": "string"
}
}
},
"required": [
"description",
"nodes",
"relationships"
]
},
"metadata": {
"oneOf": [
{
"type": "array",
"items": {
"type": "object"
}
},
{
"type": "object",
"additionalProperties": true
}
]
}
}
}CALM’s superpower
Patterns! Through the use of the CALM CLI:
Usage: calm [options] [command]
A set of tools for interacting with the Common Architecture Language Model (CALM)
Options:
-V, --version output the version number
-h, --help display help for command
Commands:
generate [options] Generate an architecture from a CALM pattern file.
validate [options] Validate that an architecture conforms to a given CALM pattern.
docify [options] Generate a documentation website off your CALM model
help [command] display help for commandPatterns in CALM
In CALM, patterns are custom JSON schemas which adhere to the core CALM Meta Schema
{
"$schema": "https://calm.finos.org/release/1.0/meta/calm.json",
"title": "Consumer Pattern 3",
"type": "object",
"$defs": {
"node-base": {
"$ref": "https://calm.finos.org/release/1.0/meta/core.json#/defs/node"
},
"relationship-base": {
"$ref": "https://calm.finos.org/release/1.0/meta/core.json#/defs/relationship"
}
},
"properties": {
"nodes": {
"type": "array",
"minItems": 5,
"prefixItems": [
{
"$ref": "#/$defs/node-base",
"properties": {
"description": { "const": "Molecule that triggers a Scheduled Event" },
"node-type": { "const": "system" },
"name": { "const": "Trigger" },
"unique-id": { "const": "trigger" }
}
},
{
"$ref": "#/$defs/node-base",
"properties": {
"description": { "const": "Molecule that sends request to the Enterprise API when it is triggered" },
"node-type": { "const": "system" },
"name": { "const": "'Fetch from System' Connector" },
"unique-id": { "const": "fetch-from-system-connector" }
}
},
{
"$ref": "#/$defs/node-base",
"properties": {
"description": { "const": "Molecule that converts payload to System Data Model" },
"node-type": { "const": "system" },
"name": { "const": "Processing" },
"unique-id": { "const": "processing" }
}
},
{
"$ref": "#/$defs/node-base",
"properties": {
"description": { "const": "Molecule that initiates connection to System and sends payload over it" },
"node-type": { "const": "system" },
"name": { "const": "'Send to System' Connector" },
"unique-id": { "const": "send-to-system-connector" }
}
},
{
"$ref": "#/$defs/node-base",
"properties": {
"description": { "const": "Target System" },
"node-type": { "const": "system" },
"name": { "const": "Target System" },
"unique-id": { "const": "target-system" }
}
}
]
},
"relationships": {
"type": "array",
"minItems": 4,
"prefixItems": [
{
"$ref": "#/$defs/relationship-base",
"properties": {
"unique-id": { "const": "event-trigger" },
"description": { "const": "Scheduled event triggers API request" },
"relationship-type": {
"const": {
"connects": {
"source": { "node": "trigger" },
"destination": { "node": "fetch-from-system-connector" }
}
}
},
"protocol": { "const": "HTTPS" },
"authentication": { "const": "OAuth2" },
"controls": {
"$ref": "https://calm.finos.org/release/1.0/meta/control.json#/defs/controls",
"properties": {
"encryption": {
"type": "object",
"properties": {
"description": {
"const": "Encryption controls for data in transit"
},
"requirements": {
"type": "array",
"minItems": 1,
"prefixItems": [
{
"$ref": "https://calm.finos.org/release/1.0/meta/control.json#/defs/control-detail",
"properties": {
"requirement-url": {
"const": "/home/fbacon/CALM/demo/requirements/encryption-in-transit-requirement.json"
},
"config-url": {
"const": "/home/fbacon/CALM/demo/configs/encryption-in-transit-config.json"
}
}
}
]
}
}
}
}
}
},
"required": ["controls"]
},
{
"$ref": "#/$defs/relationship-base",
"properties": {
"unique-id": { "const": "publish-response" },
"description": { "const": "Publishes response payload for processing" },
"relationship-type": {
"const": {
"connects": {
"source": { "node": "fetch-from-system-connector" },
"destination": { "node": "processing" }
}
}
},
"protocol": { "const": "HTTPS" }
}
},
{
"$ref": "#/$defs/relationship-base",
"properties": {
"unique-id": { "const": "processing complete" },
"description": { "const": "Publishes transformed payload to 'Send to System' Connector" },
"relationship-type": {
"const": {
"connects": {
"source": { "node": "processing" },
"destination": { "node": "send-to-system-connector" }
}
}
},
"protocol": { "const": "HTTPS" }
}
},
{
"$ref": "#/$defs/relationship-base",
"properties": {
"unique-id": { "const": "payload-to-system" },
"description": { "const": "Initiates connection to System and sends payload over it" },
"relationship-type": {
"const": {
"connects": {
"source": { "node": "send-to-system-connector" },
"destination": { "node": "target-system" }
}
}
},
"protocol": { "const": "HTTPS" }
}
}
]
}
},
"required": ["nodes", "relationships"]
}Controls in Patterns
You can include a control requirement-url and a control config-url
{
"$schema": "https://calm.finos.org/release/1.0/meta/calm.json",
"title": "Consumer Pattern 3",
"type": "object",
"$defs": {
"node-base": {
"$ref": "https://calm.finos.org/release/1.0/meta/core.json#/defs/node"
},
"relationship-base": {
"$ref": "https://calm.finos.org/release/1.0/meta/core.json#/defs/relationship"
}
},
"properties": {
"nodes": {
"type": "array",
"minItems": 5,
"prefixItems": [
{
"$ref": "#/$defs/node-base",
"properties": {
"description": { "const": "Molecule that triggers a Scheduled Event" },
"node-type": { "const": "system" },
"name": { "const": "Trigger" },
"unique-id": { "const": "trigger" }
}
},
{
"$ref": "#/$defs/node-base",
"properties": {
"description": { "const": "Molecule that sends request to the Enterprise API when it is triggered" },
"node-type": { "const": "system" },
"name": { "const": "'Fetch from System' Connector" },
"unique-id": { "const": "fetch-from-system-connector" }
}
},
{
"$ref": "#/$defs/node-base",
"properties": {
"description": { "const": "Molecule that converts payload to System Data Model" },
"node-type": { "const": "system" },
"name": { "const": "Processing" },
"unique-id": { "const": "processing" }
}
},
{
"$ref": "#/$defs/node-base",
"properties": {
"description": { "const": "Molecule that initiates connection to System and sends payload over it" },
"node-type": { "const": "system" },
"name": { "const": "'Send to System' Connector" },
"unique-id": { "const": "send-to-system-connector" }
}
},
{
"$ref": "#/$defs/node-base",
"properties": {
"description": { "const": "Target System" },
"node-type": { "const": "system" },
"name": { "const": "Target System" },
"unique-id": { "const": "target-system" }
}
}
]
},
"relationships": {
"type": "array",
"minItems": 4,
"prefixItems": [
{
"$ref": "#/$defs/relationship-base",
"properties": {
"unique-id": { "const": "event-trigger" },
"description": { "const": "Scheduled event triggers API request" },
"relationship-type": {
"const": {
"connects": {
"source": { "node": "trigger" },
"destination": { "node": "fetch-from-system-connector" }
}
}
},
"protocol": { "const": "HTTPS" },
"authentication": { "const": "OAuth2" },
"controls": {
"$ref": "https://calm.finos.org/release/1.0/meta/control.json#/defs/controls",
"properties": {
"encryption": {
"type": "object",
"properties": {
"description": {
"const": "Encryption controls for data in transit"
},
"requirements": {
"type": "array",
"minItems": 1,
"prefixItems": [
{
"$ref": "https://calm.finos.org/release/1.0/meta/control.json#/defs/control-detail",
"properties": {
"requirement-url": {
"const": "/home/fbacon/CALM/demo/requirements/encryption-in-transit-requirement.json"
},
"config-url": {
"const": "/home/fbacon/CALM/demo/configs/encryption-in-transit-config.json"
}
}
}
]
}
}
}
}
}
},
"required": ["controls"]
},
{
"$ref": "#/$defs/relationship-base",
"properties": {
"unique-id": { "const": "publish-response" },
"description": { "const": "Publishes response payload for processing" },
"relationship-type": {
"const": {
"connects": {
"source": { "node": "fetch-from-system-connector" },
"destination": { "node": "processing" }
}
}
},
"protocol": { "const": "HTTPS" }
}
},
{
"$ref": "#/$defs/relationship-base",
"properties": {
"unique-id": { "const": "processing complete" },
"description": { "const": "Publishes transformed payload to 'Send to System' Connector" },
"relationship-type": {
"const": {
"connects": {
"source": { "node": "processing" },
"destination": { "node": "send-to-system-connector" }
}
}
},
"protocol": { "const": "HTTPS" }
}
},
{
"$ref": "#/$defs/relationship-base",
"properties": {
"unique-id": { "const": "payload-to-system" },
"description": { "const": "Initiates connection to System and sends payload over it" },
"relationship-type": {
"const": {
"connects": {
"source": { "node": "send-to-system-connector" },
"destination": { "node": "target-system" }
}
}
},
"protocol": { "const": "HTTPS" }
}
}
]
}
},
"required": ["nodes", "relationships"]
}Requirement
{
"$schema": "https://json-schema.org/draft/2020-12/schema",
"$id": "./requirements/encryption-in-transit.json",
"title": "Encryption in Transit Requirement",
"description": "Ensures that if HTTPS is used, TLS version is declared and must be >=1.2.",
"type": "object",
"properties": {
"protocol": {
"type": "string",
"enum": ["HTTP", "HTTPS"]
},
"tls-version": {
"type": "string",
"enum": ["1.2", "1.3"]
}
},
"allOf": [
{
"if": {
"properties": { "protocol": { "const": "HTTPS" } }
},
"then": {
"required": ["tls-version"]
}
}
]
}Config
Let’s try a calm validate
calm validate -p pattern.json -a architecture.json
(calm-demo) fbacon@CS00058225:~/GitHub/presentations/calm/architecture$ calm validate -p pattern.json -a architecture.json
info [file-system-document-loader]: architecture.json exists, loading as file...
info [file-system-document-loader]: pattern.json exists, loading as file...
info [calm-validate]: Formatting output as json
{
"jsonSchemaValidationOutputs": [],
"spectralSchemaValidationOutputs": [],
"hasErrors": false,
"hasWarnings": falseNow let’s change the architecture
{
"nodes": [
{
"description": "Molecule that triggers a Scheduled Event",
"node-type": "system",
"name": "Trigger",
"unique-id": "trigger"
},
{
"description": "Molecule that sends request to the Enterprise API when it is triggered",
"node-type": "system",
"name": "'Fetch from System' Connector",
"unique-id": "fetch-from-system-connector"
},
{
"description": "Molecule that converts payload to System Data Model",
"node-type": "system",
"name": "Processing",
"unique-id": "processing"
},
{
"description": "Molecule that initiates connection to System and sends payload over it",
"node-type": "system",
"name": "'Send to System' Connector",
"unique-id": "send-to-system-connector"
},
{
"description": "Target System",
"node-type": "system",
"name": "Target System",
"unique-id": "target-system"
}
],
"relationships": [
{
"unique-id": "event-trigger",
"description": "Scheduled event triggers API request",
"relationship-type": {
"connects": {
"source": {
"node": "trigger"
},
"destination": {
"node": "fetch-from-system-connector"
}
}
},
"protocol": "HTTPS",
"authentication": "OAuth2",
"controls": {
"encryption": {
"description": "Encryption controls for data in transit",
"requirements": [
{
"requirement-url": "/home/fbacon/CALM/demo/requirements/encryption-in-transit-requirement.json",
"config-url": "/home/fbacon/CALM/demo/configs/encryption-in-transit-config.json"
}
]
}
}
},
{
"unique-id": "publish-response",
"description": "Publishes response payload for processing",
"relationship-type": {
"connects": {
"source": {
"node": "fetch-from-system-connector"
},
"destination": {
"node": "processing"
}
}
},
"protocol": "HTTPS"
},
{
"unique-id": "processing complete",
"description": "Publishes transformed payload to 'Send to System' Connector",
"relationship-type": {
"connects": {
"source": {
"node": "processing"
},
"destination": {
"node": "send-to-system-connector"
}
}
},
"protocol": "HTTPS"
},
{
"unique-id": "payload-to-system",
"description": "Initiates connection to System and sends payload over it",
"relationship-type": {
"connects": {
"source": {
"node": "send-to-system-connector"
},
"destination": {
"node": "target-system"
}
}
},
"protocol": "HTTPS"
}
]
}Now let’s change the architecture
{
"nodes": [
{
"description": "Molecule that triggers a Scheduled Event",
"node-type": "system",
"name": "Trigger",
"unique-id": "trigger"
},
{
"description": "Molecule that sends request to the Enterprise API when it is triggered",
"node-type": "system",
"name": "'Fetch from System' Connector",
"unique-id": "fetch-from-system-connector"
},
{
"description": "Molecule that converts payload to System Data Model",
"node-type": "system",
"name": "Processing",
"unique-id": "processing"
},
{
"description": "Molecule that initiates connection to System and sends payload over it",
"node-type": "system",
"name": "'Send to System' Connector",
"unique-id": "send-to-system-connector"
},
{
"description": "Target System",
"node-type": "system",
"name": "Target System",
"unique-id": "target-system"
}
],
"relationships": [
{
"unique-id": "event-trigger",
"description": "Scheduled event triggers API request",
"relationship-type": {
"connects": {
"source": {
"node": "processing"
},
"destination": {
"node": "fetch-from-system-connector"
}
}
},
"protocol": "HTTPS",
"authentication": "OAuth2",
"controls": {
"encryption": {
"description": "Encryption controls for data in transit",
"requirements": [
{
"requirement-url": "/home/fbacon/CALM/demo/requirements/encryption-in-transit-requirement.json",
"config-url": "/home/fbacon/CALM/demo/configs/encryption-in-transit-config.json"
}
]
}
}
},
{
"unique-id": "publish-response",
"description": "Publishes response payload for processing",
"relationship-type": {
"connects": {
"source": {
"node": "fetch-from-system-connector"
},
"destination": {
"node": "processing"
}
}
},
"protocol": "HTTPS"
},
{
"unique-id": "processing complete",
"description": "Publishes transformed payload to 'Send to System' Connector",
"relationship-type": {
"connects": {
"source": {
"node": "processing"
},
"destination": {
"node": "send-to-system-connector"
}
}
},
"protocol": "HTTPS"
},
{
"unique-id": "payload-to-system",
"description": "Initiates connection to System and sends payload over it",
"relationship-type": {
"connects": {
"source": {
"node": "send-to-system-connector"
},
"destination": {
"node": "target-system"
}
}
},
"protocol": "HTTPS"
}
]
}Result?
calm validate -p pattern.json -a invalid-architecture.json
(calm-demo) fbacon@CS00058225:~/GitHub/presentations/calm/architecture$ calm validate -p pattern.json -a bad-architecture.json
info [file-system-document-loader]: bad-architecture.json exists, loading as file...
info [file-system-document-loader]: pattern.json exists, loading as file...
info [calm-validate]: Formatting output as json
{
"jsonSchemaValidationOutputs": [
{
"code": "json-schema",
"severity": "error",
"message": "must be equal to constant",
"path": "/relationships/0/relationship-type",
"schemaPath": "#/properties/relationships/prefixItems/0/properties/relationship-type/const"
}
],
"spectralSchemaValidationOutputs": [
{
"code": "architecture-nodes-must-be-referenced",
"severity": "warning",
"message": "Node with ID 'trigger' is not referenced by any relationships.",
"path": "/nodes/0/unique-id",
"schemaPath": "",
"line_start": 0,
"line_end": 0,
"character_start": 118,
"character_end": 127
}
],
"hasErrors": true,
"hasWarnings": trueCALM: Architecture-as-Code | https://finleybacon.github.io/presentations/
